Sina – a compact and highly efficient stove
Stoves

Sina – a compact and highly efficient stove

Compact, robust and exceptionally efficient – 6 kW
BImSCHV 1+2 Wirkungsgrad gemäß BImSchV: %value%
Wood
Wood
HMS
HMS
Single-handed air regulation
Single-handed air regulation
Air+
Air+
View this product at a local dealer
Find dealers
Technical Data
Dimensions
Height [mm]
1245
Width [mm]
600
Depth [mm]
421
Equipment
Heat Memory System (HMS)
Accessories
Side panel version
Steel
glass shape
round
curved glass
Flat
air and air control
Accessories
cladding material / colour
Steel, iron-gray
Performance data
Space heating capacity, at least (depending on the building insulation) [mі]
109/109
Space heating capacity, maximum (depending on the building insulation) [mі]
171/171
energy efficiency class
A+/A+
Nominal heat efficiency in [kW]
6,0/6,0
Testing
Federal Emission Control Ordinance Level
1+2
Certificate / green flame green
7 *
Fuels
Recommended fuels
Billet wood
Accessories
wood box
Accessories

Stove with optimum efficiency – available with optional automatic control

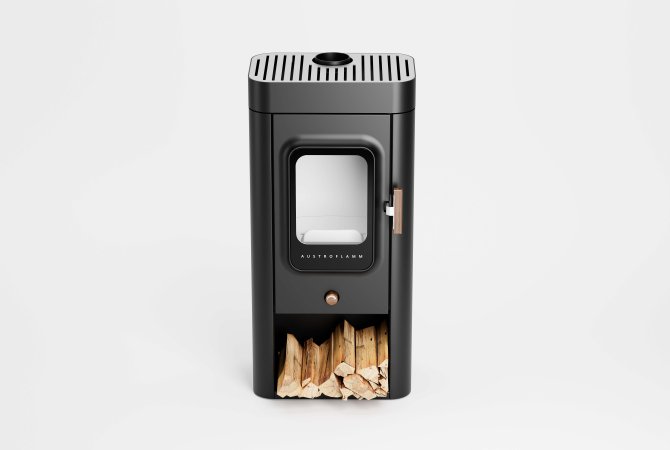

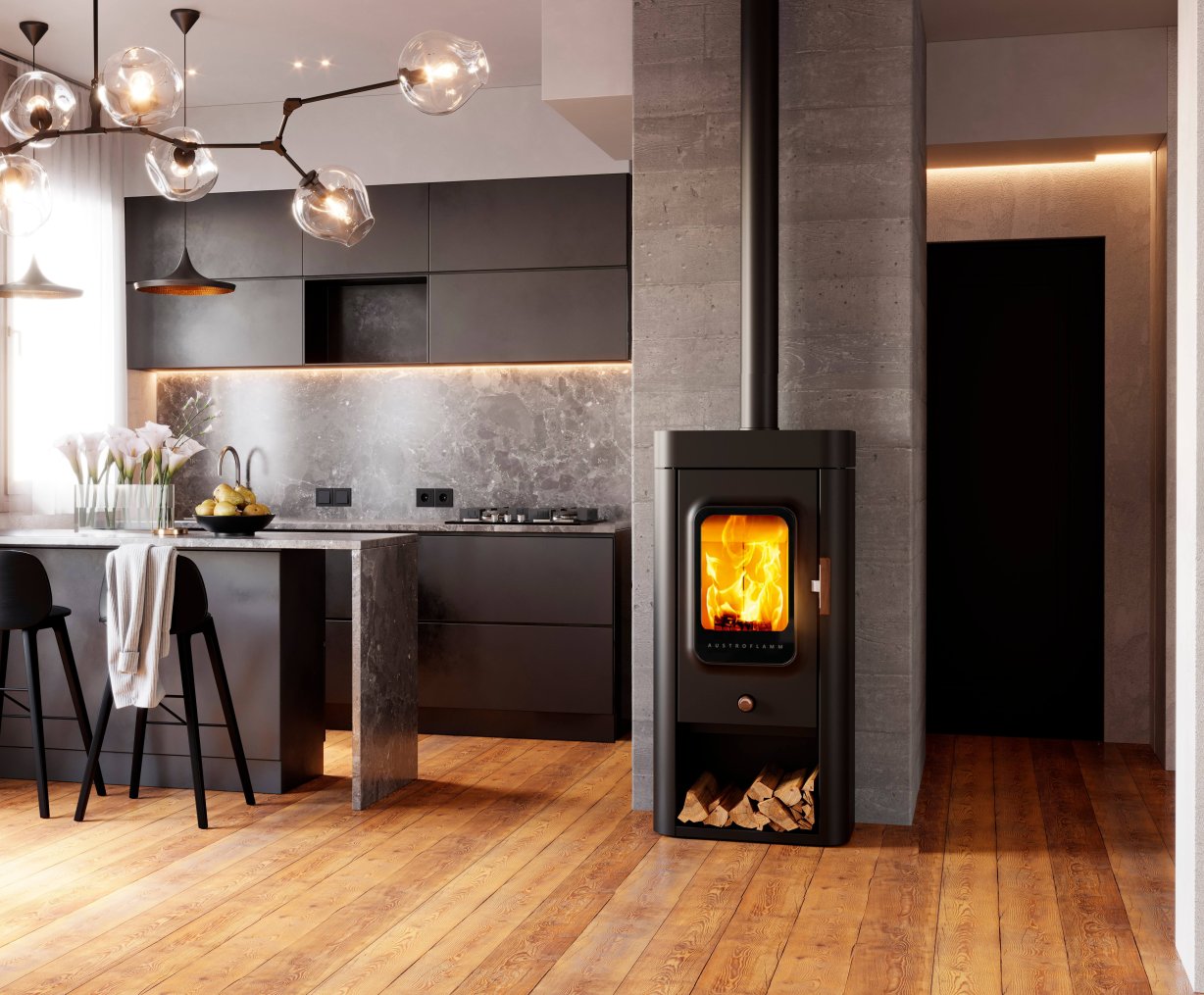

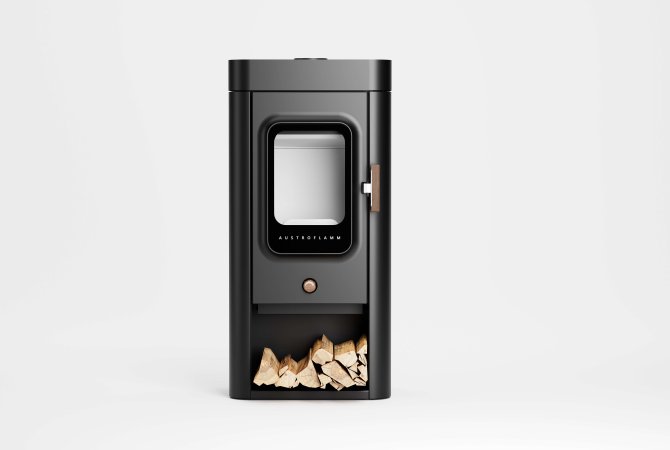

Our Sina wood-burning stove will enchant you with its rounded shape that has no sharp edges. Everything about it is soft and harmonious. Thanks to its narrow depth, this stove also takes up extremely little space – yet still creates plenty of atmosphere in your living room. Even the standard version of this stove offers an efficiency level of 85%. With the optional Air+ automatic combustion air control, you can ensure that the stove always operates within the optimum efficiency range. The integrated log compartment lends this compact stove a rustic charm and quite logically saves a fair bit of space!



A 6 kW stove for passive and low-energy homes



Our Sina stove is also DIBT-certified for room-sealed operation. This makes the stove perfectly ideal for use in passive and low-energy homes with their virtually airtight building envelope.

If you wish, Sina can be fitted with the patented Austroflamm HMS heat storage system for stoves. An additional 68 kg of storage mass transforms the stove into a compact storage stove. This means the stove will continue to give off heat for many hours, long after you last added wood.



Stoves from Austroflamm – supreme quality, simple operation and timeless design



The stove door, crafted from robust cast iron, closes and locks automatically. A single lever, conveniently located on the front of the stove, controls the combustion air supply, regulating both the primary and secondary air flows. The secondary air is used for what is known as the “airwash” system, which keeps the large glass door of the stove clean for a long time. This way, you can enjoy the stunning play of flames in your Austroflamm stove without any obstruction.

The stove can be connected to the chimney in the traditional way with a flue pipe extending upwards, or “invisibly” directly at the rear.

The firebox lining made from Austroflamm’s patented Keramott, which is heat-resistant up to 1200°C, combines with the sophisticated combustion air system to ensure high combustion temperatures, thereby guaranteeing an outstanding heat output and a high efficiency level of over 85% for the stove.

Two things speak for themselves: Austroflamm stoves have emission levels well below all current limits and are fully certified and approved for operation.

Boasting a nominal heat output of 6 kW, the Sina stove is ideal for heating rooms with a volume of up to 165 m³.
